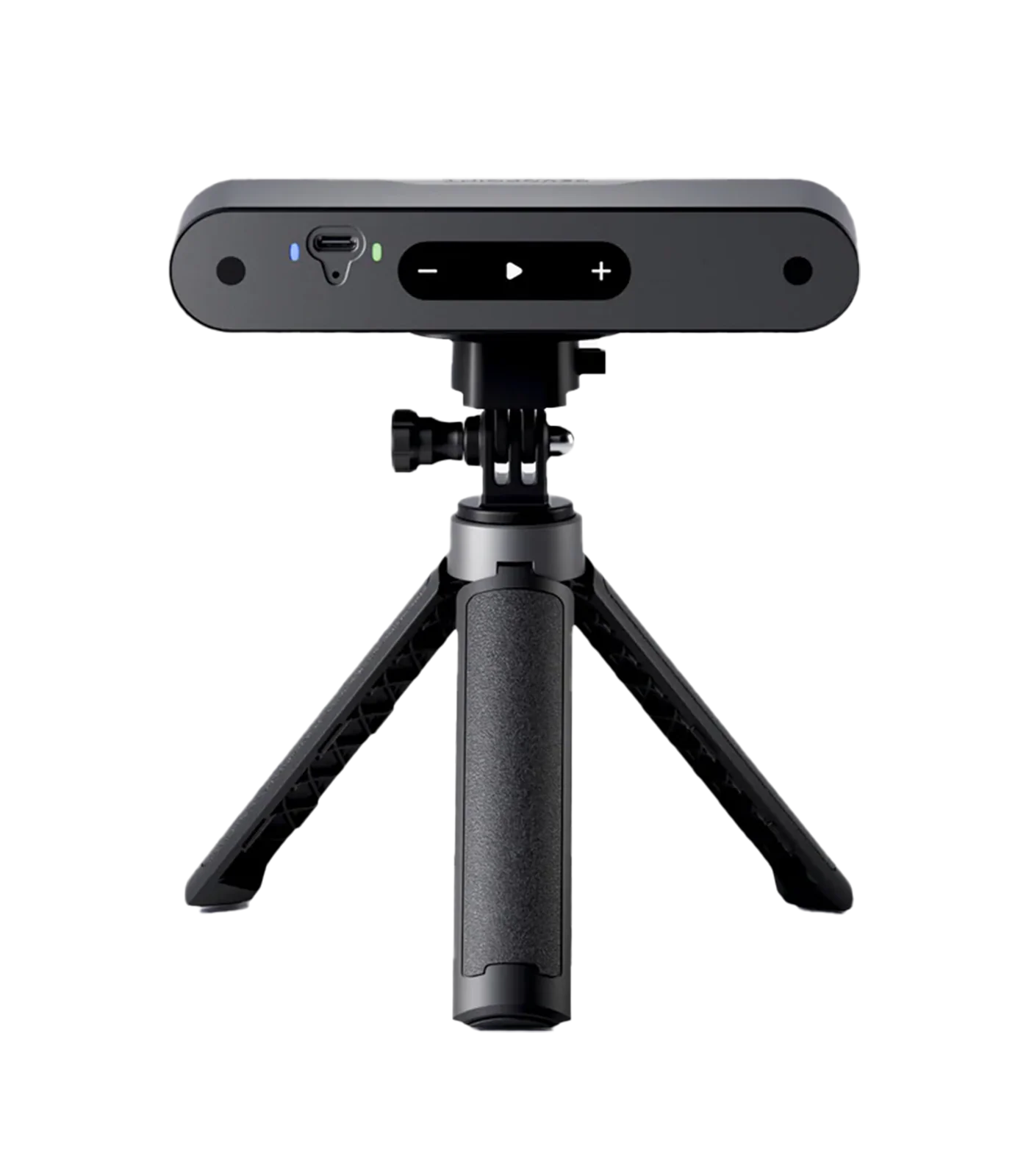

POP 3 is the next-gen 3D scanner from the POP series with new and improved hardware, design, and usability. The improvements in POP 3's capabilities make capturing 3D scans for 3D printing, 3D animation, reverse engineering, healthcare, product design, digitizing historical items, VR/AR, and more even easier.

• Revopoint POP 3 User Manual

Content

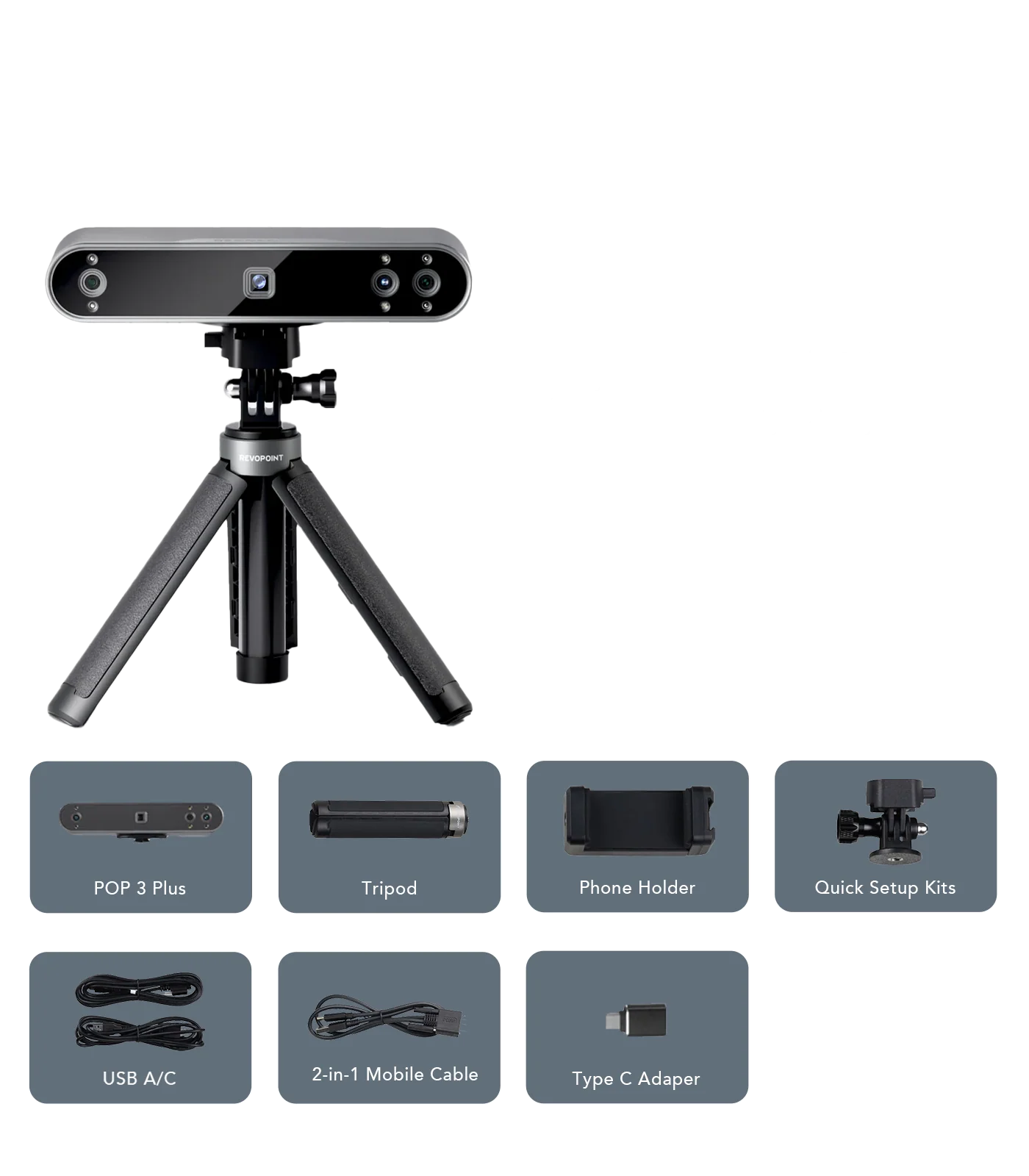

What's in POP 3 3D Scanner Premium Standard:

• POP 3 3D scanner x1
• Tripod x1
• Quick Setup Kits x1
• USB A/C x1
• Phone Holder x1
• 2-in- 1 Mobile Cable x1
• Type-C Adapter x1

Benefits

POP 3D Scanner, Scanning Made Easy for Everyone

• Intelligent Scanning: Enjoy seamless tracking and frame stitching with POP 3's 9-axis IMU (Inertial Measurement Unit). It continuously measures the scanner's movement and helps to eliminate faulty frames caused by fast movement or shaking.
• Time-Saving Accuracy: Achieve a single-frame precision of up to 0.05mm at up to 18fps for lightning-fast scans and reliable 3D model accuracy!
• Better Color Accuracy: Get improved color and texture accuracy through the RGB camera's bigger aperture capturing more light and dual white LEDs providing supporting illumination to eliminate shadows and make the colors vibrant.
• Enhanced Marker Tracking: Capture scans using marker points faster and more reliably with dual infrared LEDs mounted next to both depth cameras providing extra light for better marker point tracking.

Specs

• Technology: Biocular Dual Camera Infrared Light

• Single-frame Precision: Up to 0.05mm

• Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects.

• Output Formats: PLY, OBJ, and STL

• Single Capture Range: 125mm 225mm

• Working Distance: 150mm - 400mm

• Scanning Speed: 12fps - 18fps

• Minimum Scan Volume: 20mm x 20mm x 20mm

• Compatible OS: Windows, Android, iOS, macOS

• Connection Modes: USB Type-C to USB 3.0 Type-A

• Tracking Methods: Feature, Marker

• Point Distance/Resolution: 0.05mm

• Single-frame Accuracy: Up to 0.1mm

• Scanning Environment: Indoors and Outdoors

• Scanner Weight: 190g

• Scanner Dimensions: 153 45 29mm

• 3D Printing Compatible: Yes

• Light Source: Class 1 Infrared Light

• Wi-Fi: 6.0

*The aforesaid accuracy is acquired in the standard lab environment, which might vary subject to actual operating environment.
*Windows 7 is not supported.
